10 Best Guitar Pickup Wiring Setups Every Player Should Try
You’ll want guitar pickup wiring setups that balance clear tone, noise reduction, and durability. Try vintage-style cloth-covered wires like Guyker’s for warmth and flexibility or KAISH’s foil-shielded 24 AWG wire to cut interference. Prewired kits, like Yootones or BIBABLYKE, speed installation while ensuring noise-free sound. Choose 22–24 AWG gauge for strength and signal clarity, matching your pickups’ needs. Proper shielding and push-back insulation also simplify soldering. Explore these options to access your guitar’s full sonic potential.
Key Takeaways
- Use vintage-style cloth-covered push-back wire for easy soldering and authentic tone in vintage or reissue guitars.
- Shielded foil wiring kits effectively reduce electromagnetic interference and noise for cleaner, clearer pickup signals.
- Prewired harness kits simplify installation and ensure consistent wiring perfect for Les Paul or similar electric guitar models.
- Choose 22-24 AWG wire gauge to balance flexibility, signal clarity, and durability matching your pickups and electronics.
- Four-conductor wire setups enable advanced coil-splitting, phase switching, and versatile pickup combinations for tonal variety.
| Guyker Cloth-Covered Braided Guitar Wire – 15 Feet |  | Vintage Style Classic | Wire Gauge: Not specified (7-strand wire) | Length: 15 feet total (5 feet each color) | Wire Color Options: Black, white, yellow | VIEW LATEST PRICE | Read Our Analysis |
| KAISH 24AWG Foil Shielded Guitar Pickup Wire |  | Noise-Reducing Shielded | Wire Gauge: 24 AWG | Length: 3 feet | Wire Color Options: Not specified (single cable) | VIEW LATEST PRICE | Read Our Analysis |
| KAISH 22AWG Vintage-Style Guitar Wiring Harness |  | Easy Push-Back Wiring | Wire Gauge: 22 AWG | Length: 3 feet each color (black and white) | Wire Color Options: Black, white, yellow | VIEW LATEST PRICE | Read Our Analysis |
| 4-Conductor Shielded Guitar Pickup Wiring Cable |  | Long Run Shielded | Wire Gauge: Not specified (4 conductor) | Length: 300 cm (approx. 118 inches) | Wire Color Options: Not specified (4 conductor) | VIEW LATEST PRICE | Read Our Analysis |
| The Art Of Tone Electric Guitar Pushback Wire Set |  | Authentic Vintage Quality | Wire Gauge: 22 AWG | Length: 10 feet each color (black, white, yellow) | Wire Color Options: Black, white, yellow | VIEW LATEST PRICE | Read Our Analysis |
| Yootones Electric Guitar Wiring Harness Kit |  | Complete Wiring Kit | Wire Gauge: Not specified (prewired harness) | Length: Not specified (prewired kit) | Wire Color Options: Not specified (prewired harness) | VIEW LATEST PRICE | Read Our Analysis |
| Vintage Cloth Waxed Pushback Guitar Wire 10 Feet |  | Top-Rated Vintage Wire | Wire Gauge: Not specified (cloth covered, single-core twist) | Length: 10 feet total (3.3 feet each color) | Wire Color Options: Black, white, yellow | VIEW LATEST PRICE | Read Our Analysis |
| 75 Pack 22AWG Hookup Wire for Guitar |  | Bulk Supply Pack | Wire Gauge: 22 AWG | Length: Approx. 21 cm (8.3 inches per wire) | Wire Color Options: Red, black, white (multiple wires) | VIEW LATEST PRICE | Read Our Analysis |
| BIBABLYKE Electric Guitar Wiring Harness Kit |  | Reliable Prewired Harness | Wire Gauge: Not specified (prewired harness) | Length: Not specified (prewired kit) | Wire Color Options: Not specified (prewired harness) | VIEW LATEST PRICE | Read Our Analysis |
| Pre-Wired Humbucker Guitar Pickups Wiring Kit Chrome |  | Plug-and-Play Humbucker | Wire Gauge: Not specified (prewired harness) | Length: Not specified (prewired kit) | Wire Color Options: Not specified (prewired harness) | VIEW LATEST PRICE | Read Our Analysis |
You may be interested
More Details on Our Top Picks

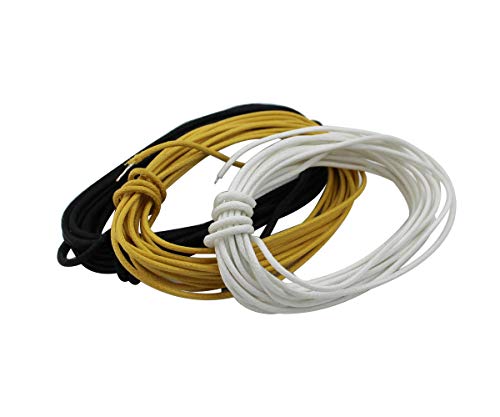

Guyker Cloth-Covered Braided Guitar Wire – 15 Feet
If you’re looking for a reliable and easy-to-install wire for your guitar pickup wiring setup, the Guyker Cloth-Covered Braided Guitar Wire is an excellent choice. You get 15 feet of wire, divided evenly into black, white, and yellow sections, so you can easily identify connections. This 7-strand metal wire with a vintage-style cloth braid not only looks great but feels easy to handle. The push-back cloth sleeve means you won’t need to cut the cover—just push it back and solder your connections. Guyker is known for quality, making this wire perfect for your next project.
- Wire Gauge:Not specified (7-strand wire)
- Length:15 feet total (5 feet each color)
- Wire Color Options:Black, white, yellow
- Shielding/Noise Reduction:Cloth covering helps handling, no explicit shielding
- Installation Type:Push-back cloth sleeve, no cutting needed
- Target Application:Electric guitar wiring and pickup setups
- Additional Feature:Vintage-style braided design
- Additional Feature:Push-back cloth sleeve
- Additional Feature:Multiple color distribution

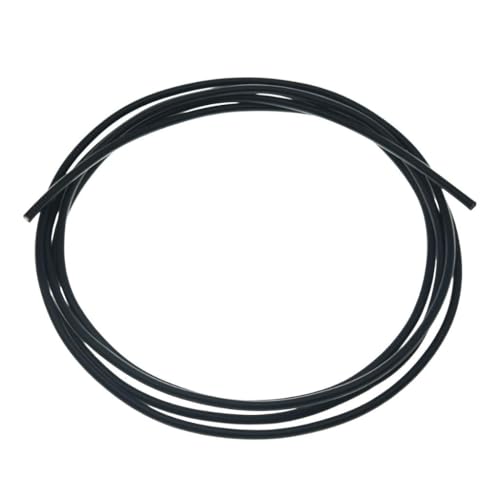

KAISH 24AWG Foil Shielded Guitar Pickup Wire
The KAISH 24AWG Foil Shielded Guitar Pickup Wire stands out as an excellent choice for guitarists looking to reduce unwanted electrical noise in their instrument’s wiring. This 3-foot hookup wire features a 24 AWG stranded copper core and a polyethylene insulation that keeps things flexible yet durable. Its standout feature is a wrapped foil shield, which effectively minimizes electromagnetic interference, making your pickups sound cleaner and clearer. Perfect for connecting pickups, output jacks, and tone controls, this wire adapts easily inside electric guitars without kinks. If you want reliable noise reduction and flexibility, KAISH’s foil shielded wire is a smart upgrade.
- Wire Gauge:24 AWG
- Length:3 feet
- Wire Color Options:Not specified (single cable)
- Shielding/Noise Reduction:Foil shielded cable to reduce electrical interference and noise
- Installation Type:Hookup wire, requires soldering
- Target Application:Electric guitar pickups, output jack, volume/tone wiring
- Additional Feature:Foil wrapped shield
- Additional Feature:Polyethylene insulation
- Additional Feature:4mm outer diameter
KAISH 22AWG Vintage-Style Guitar Wiring Harness
Guitarists looking for a reliable and easy-to-use wiring harness will find the KAISH 22AWG Vintage-Style Guitar Wiring Harness an excellent choice. Its push-back waxed cloth wire design saves you the hassle of stripping insulation, making installation faster and cleaner. You’ll appreciate the durable waxed cotton outer braid and corrosion-resistant Celanese inner braid that keep connections solid. The 7-strand pre-tinned copper wire supports excellent signal transmission. With flexible black, white, and yellow wires, you can neatly wire your pickups and switches. Lightweight and user-friendly, this harness helps you achieve a tidy, safe, and vintage-style guitar setup with confidence.
- Wire Gauge:22 AWG
- Length:3 feet each color (black and white)
- Wire Color Options:Black, white, yellow
- Shielding/Noise Reduction:Waxed cloth cover with inner braid for corrosion protection (no explicit foil shield)
- Installation Type:Push-back waxed cloth wire, no stripping needed
- Target Application:Guitar electronics, pickups, and switches wiring
- Additional Feature:Waxed cotton outer braid
- Additional Feature:Celanese corrosion protection
- Additional Feature:Pre-tinned push-back wire
4-Conductor Shielded Guitar Pickup Wiring Cable
When you’re looking to reduce noise and keep your guitar’s signal clean over long wiring runs, a 4-conductor shielded guitar pickup wiring cable is a fantastic choice. This cable, like the one from Ogdni, has tinned copper conductors inside a PVC jacket, which guarantees durability and excellent signal isolation. Its 3mm outer diameter makes it flexible but sturdy enough for guitar applications. With approximately 118 inches of length, it fits most wiring needs comfortably. Using this cable helps maintain clarity, cuts down unwanted hum, and works well with various pickup configurations, enhancing your guitar’s overall tone.
- Wire Gauge:Not specified (4 conductor)
- Length:300 cm (approx. 118 inches)
- Wire Color Options:Not specified (4 conductor)
- Shielding/Noise Reduction:Shielded wire for noise reduction
- Installation Type:Standard shielded cable, soldering required
- Target Application:Guitar isolation, noise reduction, and long wiring runs
- Additional Feature:Tinned copper conductors
- Additional Feature:PVC jacket covering
- Additional Feature:Optical fiber cable type
The Art Of Tone Electric Guitar Pushback Wire Set
Anyone who loves vintage gear or wants to recreate the classic sounds of the 1950s will appreciate The Art Of Tone Electric Guitar Pushback Wire Set. This set features 22 AWG pre-tinned stranded copper wire, available in black, white, and yellow, each color offering 10 feet. Designed with a vintage waxed cotton outer braid and celanese inner braid, it delivers both authenticity and durability. You’ll find soldering easier thanks to the pushback design—just cut, push back the insulation, and solder. Made in the USA by the same producer of original vintage wire, it’s perfect for enhancing classic guitar tones with dependable quality.
- Wire Gauge:22 AWG
- Length:10 feet each color (black, white, yellow)
- Wire Color Options:Black, white, yellow
- Shielding/Noise Reduction:Waxed cotton braid and celanese inner braid for shielding effect
- Installation Type:Push-back wire for easy stripping, soldering
- Target Application:Vintage guitar wiring enthusiasts and DIY projects
- Additional Feature:Made in USA
- Additional Feature:Waxed cotton and celanese braid
- Additional Feature:7 strands per cable

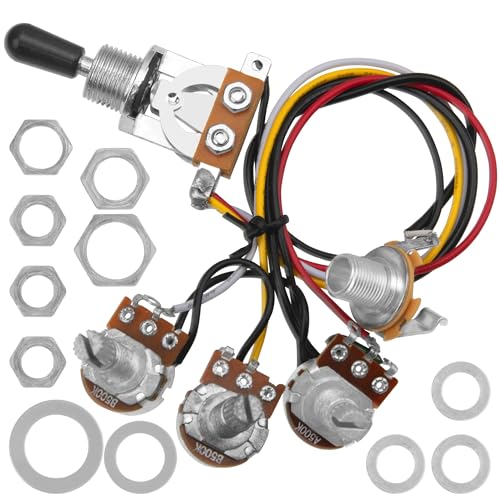

Yootones Electric Guitar Wiring Harness Kit
The Yootones Electric Guitar Wiring Harness Kit stands out as an excellent choice for Les Paul LP electric guitar owners who want a straightforward upgrade or replacement solution. It features a 2 volume, 1 tone (2V1T) layout, designed to fit perfectly in your Les Paul. This complete kit includes quality 500k pots with green capacitors, a 3-way toggle switch, output jack, and all necessary wiring. Made from durable metal and PVC, it’s built to last. Installation is simple thanks to the prewired design, requiring only soldering pickups and grounding. This user-friendly setup is ideal for DIY guitar projects.
- Wire Gauge:Not specified (prewired harness)
- Length:Not specified (prewired kit)
- Wire Color Options:Not specified (prewired harness)
- Shielding/Noise Reduction:Not explicitly stated; standard prewired harness
- Installation Type:Prewired harness, soldering pickups and grounding required
- Target Application:Les Paul LP electric guitar wiring upgrade kit
- Additional Feature:Prewired 2V1T config
- Additional Feature:Includes toggle switch and jack
- Additional Feature:Metal and PVC materials
Vintage Cloth Waxed Pushback Guitar Wire 10 Feet
If you’re looking to upgrade your electric guitar wiring with a reliable and easy-to-install option, the Vintage Cloth Waxed Pushback Guitar Wire is a perfect fit. This 10-foot set includes three 3.3-foot lengths in white, black, and yellow, crafted from oxygen-free copper with a single-core twist for excellent signal clarity. Its cloth-covered, waxed, vintage-style pushback insulation lets you simply push back the cloth to expose the wire, so you can solder without cutting. Rated 4.8 stars by players, it combines vintage aesthetics with modern convenience—ideal for quality guitar upgrade kits.
- Wire Gauge:Not specified (cloth covered, single-core twist)
- Length:10 feet total (3.3 feet each color)
- Wire Color Options:Black, white, yellow
- Shielding/Noise Reduction:Cloth-covered waxed pushback wire (no explicit shield)
- Installation Type:Push-back waxed cloth, push and solder installation
- Target Application:Electric guitar upgrade kits
- Additional Feature:Oxygen-free copper core
- Additional Feature:Cloth-covered waxed style
- Additional Feature:Lightweight design

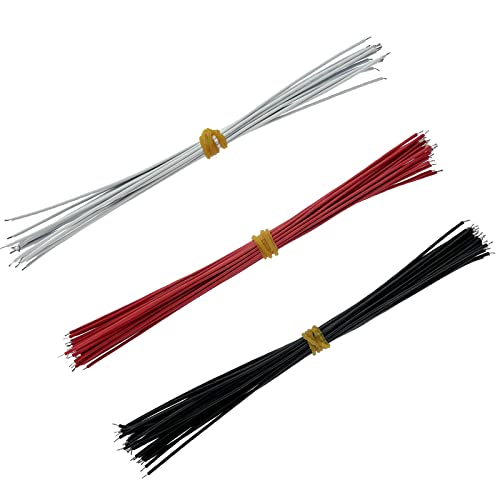

75 Pack 22AWG Hookup Wire for Guitar
When you’re wiring or upgrading your guitar’s pickups, having reliable hookup wire makes all the difference. The 75 Pack 22AWG hookup wire offers a great balance of quality and convenience. You get 75 pieces in red, black, and white, each about 8.3 inches long—perfect for neat, organized wiring. Made from copper and plastic, these wires guarantee strong signal flow and durability. Designed specifically for musical instruments, they feature specialized connectors that fit guitar wiring needs precisely. With a solid 4.8-star rating, this MKZZ product is a dependable choice for any player aiming to enhance their guitar’s electronics.
- Wire Gauge:22 AWG
- Length:Approx. 21 cm (8.3 inches per wire)
- Wire Color Options:Red, black, white (multiple wires)
- Shielding/Noise Reduction:Not specified
- Installation Type:Hookup wire, soldering required
- Target Application:Guitar and other musical instrument wiring
- Additional Feature:75-piece color assortment
- Additional Feature:Specialized instrument connectors
- Additional Feature:Short length wires
BIBABLYKE Electric Guitar Wiring Harness Kit
Guitar enthusiasts looking to upgrade or replace their electric guitar wiring will find the BIBABLYKE Electric Guitar Wiring Harness Kit an excellent choice because it comes prewired with essential components like a 3-way switch, 500K pots, and a 6.35mm jack. This kit offers durable, metal construction and low-noise functionality, ensuring clear sound and balanced volume control across pickups. Installation is straightforward, requiring soldering pickups to the switch and proper grounding. Plus, the package includes screws, nuts, and washers, making the process smoother. If you want reliable, quality wiring that enhances performance and looks, BIBABLYKE is a solid pick.
- Wire Gauge:Not specified (prewired harness)
- Length:Not specified (prewired kit)
- Wire Color Options:Not specified (prewired harness)
- Shielding/Noise Reduction:Low noise design mentioned
- Installation Type:Prewired harness, soldering pickups and grounding
- Target Application:Electric guitar replacement wiring harness
- Additional Feature:Prewired low-noise switches
- Additional Feature:Includes screws and washers
- Additional Feature:Durable metal/electronic parts
Pre-Wired Humbucker Guitar Pickups Wiring Kit Chrome
Crafting a seamless upgrade or replacement for your cigar box or electric guitar becomes much easier with the Pre-Wired Humbucker Guitar Pickups Wiring Kit Chrome. This all-in-one set includes a double coil pickup, two tone pots (A500K and B500K), a 6mm jack, and screws—everything you need. It’s pre-wired with shielded cables, so you’ll skip soldering and install quickly. Made from durable aluminum, it promises a solid build and strong cords. The high-quality humbucker pickup delivers warm, noise-reduced tones perfect for blues and rock. If you’re into custom projects or need a reliable replacement, this kit’s made for you.
- Wire Gauge:Not specified (prewired harness)
- Length:Not specified (prewired kit)
- Wire Color Options:Not specified (prewired harness)
- Shielding/Noise Reduction:Shielded cable included for noise reduction
- Installation Type:Fully pre-wired, no soldering needed
- Target Application:Cigar box and electric guitar pickup wiring replacement
- Additional Feature:Shielded cable, no solder
- Additional Feature:Aluminum durable construction
- Additional Feature:Warm, noise-reducing humbucker
Factors to Consider When Choosing Guitar Pickup Wiring
When choosing guitar pickup wiring, you’ll want to pay close attention to wire gauge since it affects signal quality and flexibility. Shielding plays a big role in cutting down noise, while durable materials guarantee your setup lasts through plenty of gigs. Don’t forget to match wire length and compatibility with your pickups to keep everything running smoothly.
Wire Gauge Importance
Because wire gauge plays a key role in your guitar’s sound, choosing the right size is essential for achieving the finest tonal quality. Wire gauge, measured in AWG, tells you the thickness of the wire; lower numbers mean thicker wire with less resistance. Thicker wires, like 22 AWG, handle current better, which often improves your guitar’s tonal response and overall performance. If you pick wire that’s too thin, such as 24 AWG or higher, you risk losing signal quality and might hear unwanted noise. Typically, 22 to 24 AWG strikes a good balance between flexibility, strength, and sound. Remember, the best gauge for your setup depends on the pickups and electronics you use, so match the wire accordingly for ideal tone and reliability.
Shielding and Noise Reduction
Shielding plays an essential role in reducing noise and preserving the clarity of your guitar’s sound. Using foil or braided metal shielding in your wiring cuts down electromagnetic interference, giving you a cleaner, crisper tone. Foil shields, often paired with polyethylene insulation, effectively minimize electrical noise during your performance. Tinned copper conductors not only maintain strong signal transmission but also resist corrosion over time, helping your setup stay reliable. Braided shields add flexibility and durability to your wiring, decreasing the chances of crimping that can cause signal loss and unwanted noise. Plus, with proper shielding, you can run longer wires in your guitar without sacrificing sound quality. Considering these factors helps you build a quieter, more consistent tone that really lets your playing shine.
Material and Durability
Choosing the right materials for your guitar pickup wiring affects both how well your signal travels and how long your setup lasts. Copper wiring, especially oxygen-free variants, offers excellent conductivity and resists corrosion, ensuring clearer tone and durability. You’ll find stranded copper wire is flexible, which helps when routing inside your guitar. The shielding—whether foil or braided—blocks unwanted electromagnetic noise, giving you a cleaner sound. Outer insulation styles matter, too: PVC is tough, while cloth-covered, waxed insulation offers easy handling and adds vintage flair. Vintage push-back designs save time since you don’t need to strip wires before installation. Don’t forget the durability of components like pots and switches; their quality can define how reliable your guitar’s electrical system remains over time. Choosing solid materials means less maintenance and better performance for years.
Wire Length Options
Wire length plays an essential role in how you install and manage your guitar’s electronics. You’ll typically find wiring lengths from about 3 feet up to over 15 feet, letting you decide how much slack you need inside your guitar. If you go longer, like 15 feet, you gain flexibility for complex routing but might deal with extra weight and clutter. Shorter wires around 3 feet keep things tidy and easy to handle, which is great for tight spaces. Don’t forget wire gauge: thicker ones like 22AWG or 24AWG help reduce signal loss over longer distances, preserving your tone. So, pick a wire length that matches your guitar’s size and component layout to guarantee smooth installation and exceptional sound quality every time.
Compatibility With Pickups
When selecting wiring for your guitar pickups, you’ll want to focus on how well the wires match the pickups themselves. First, check the wire gauge—22AWG or 24AWG are common choices that balance signal quality and flexibility. Using the right gauge helps keep your tone clear and strong. Next, consider shielding to reduce electromagnetic interference, which can cause unwanted noise. Also, look closely at conductor count: basic pickups often use 2-conductor wires, while more advanced setups like coil-splitting need 4-conductor wiring. The insulation type matters too—push-back wire can simplify your work. Finally, plan for the right wire length, usually at least 3 feet, so you have enough slack for neat, secure connections without crowding. Matching your wiring to your pickups keeps your guitar sounding its best.
Ease of Installation
Although the quality of your pickups is essential, the ease of installing their wiring can make a huge difference in your building or upgrading experience. Choosing wiring with a push-back design lets you simply push and solder without cutting insulation, speeding up installation. Pre-wired harness kits take this further by providing everything assembled, saving time and reducing hassle. Flexible wires help you achieve neat bends, improving both appearance and safety. Materials like oxygen-free copper enhance conductivity and durability, ensuring long-lasting performance. If you’re working on a DIY project, selecting systems with minimal soldering makes installation much more accessible, especially if you have limited experience. By focusing on ease of installation, you’ll enjoy a smoother, faster, and cleaner setup that gets you back to playing sooner.
Vintage Vs Modern Styles
Choosing between vintage and modern guitar pickup wiring styles can shape not only the sound but also the feel and reliability of your instrument. Vintage wiring, often featuring cloth-covered, push-back designs and 22 AWG pre-tinned copper wire, offers classic tonal qualities with enhanced clarity and reduced signal loss. It’s perfect if you’re restoring an older guitar or chasing that mid-20th-century vibe. On the other hand, modern wiring prioritizes convenience with PVC insulation and pre-wired harnesses, making installation quicker and simpler. While modern setups might sacrifice some tonal warmth, they often improve noise reduction and overall reliability. Ultimately, consider your guitar’s purpose: opt for vintage wiring to preserve tradition and tone, or choose modern wiring for ease, functionality, and a contemporary build.
Frequently Asked Questions
How Do Pickup Types Affect Guitar Tone?
Pickup types shape your guitar’s tone by controlling how string vibrations convert into electrical signals. Single-coil pickups deliver bright, crisp sounds with more high-end clarity but can produce hum. Humbuckers reduce noise, offering a thicker, warmer tone with stronger midrange and bass. P90s blend both traits, providing raw grit with warmth. Choosing your pickup influences your sound’s character, so be sure to match them to your preferred music style and playing dynamics.
What Tools Are Essential for Wiring Pickups?
You need a soldering iron with a fine tip for precise connections. Get quality solder, preferably rosin-core, to guarantee solid joints. Wire strippers and cutters help you prepare the wires neatly. A multimeter is essential for checking continuity and resistance, preventing mistakes. Tweezers and small screwdrivers aid in handling tiny parts. Finally, heat shrink tubing or electrical tape protects your wiring from shorts. These tools will make your wiring job smooth and reliable.
Can I Combine Single-Coil and Humbucker Pickups?
Absolutely, you can combine single-coil and humbucker pickups in your guitar. Think of the crisp, bright tone of single-coils alongside the thick, warm sound of humbuckers—each brings unique character. Wiring them requires proper switching and grounding to avoid noise issues. Using coil-splitting or phase switching can expand tonal options. With the right wiring kit and patience, you’ll blend these pickups for versatile, rich sounds that suit many playing styles.
How Does Pickup Height Influence Sound?
Pickup height directly affects your guitar’s tone and output. When you raise pickups closer to the strings, you’ll get a louder, more powerful sound with stronger bass response. Lowering them softens the attack, yielding a warmer, smoother tone but less output. You’ll want to balance height carefully: too close can cause magnetic interference and string buzzing, while too far makes your sound weak and thin. Adjusting height tailors your tone precisely.
What Are Coil-Splitting Benefits and Drawbacks?
Coil-splitting lets you switch a humbucker pickup to single-coil mode, giving you twice the tonal variety. This adds bright, twangy sounds ideal for blues or funk. However, you might lose some output and encounter added noise since single coils pick up more hum. If you value versatility and explore genres, coil-splitting’s a great tool—but if you rely on thick, noise-free tones, it might not suit your style perfectly.
